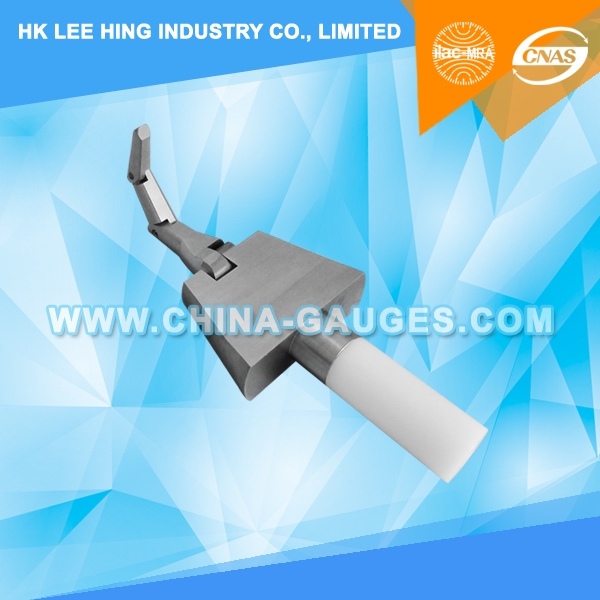

UL 498 Figure 9.1 Articulate Probe with Web Stop
- Measurement & Analysis Instruments > Safety Instrument
- Include ISO 17025 CNAS & ILAC Test Report
- Item No.: LX-PA100A
- Made in China
- Product description: Mainly used for the inspection to prevent the body touch dangerous live parts,heating or hot parts, mechanical components, as well as inspection of solid foreign bodies into the equipment. It is neces
PRODUCT INTRODUCTION
Specification:
1. According to: UL 498 Figure 9.1, UL 507 Figure 9.2 (PA100A), UL 1017 figure 2, figure 6.5 UL 1062, UL 982 figure 7.1 and figure 1.2 UL 474 figure 5.1 and figure 14, UL 60065 UL 6500 figure 14, Figure 7.2 and figure 8.3 UL 1278 UL 1082.
2. Mainly used for the inspection to prevent the body touch dangerous live parts,heating or hot parts, mechanical components, as well as inspection of solid foreign bodies into the equipment. It is necessary for protection against electric shock test of household and similar electrical appliances.
3. This is the "UL" test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. Made of all nylon. Bell-Core accessory available.The handle is made of nylon. The finger is made of stainless steel.
Technology Parameter:
Test finger diameter:25.4 mm(1 inch)
Test finger length:101.6 mm(4 inch)
Head radius: R12.7 mm(1/42 inch)
Tail diameter:31.75 mm(1-1/4 inch)
Material: stainless steel and nylon
Reference: UL 498, UL 507, UL 1017, UL 1062, UL 982, UL 474, UL 60065, UL 6500, UL 1278, UL 1082.
