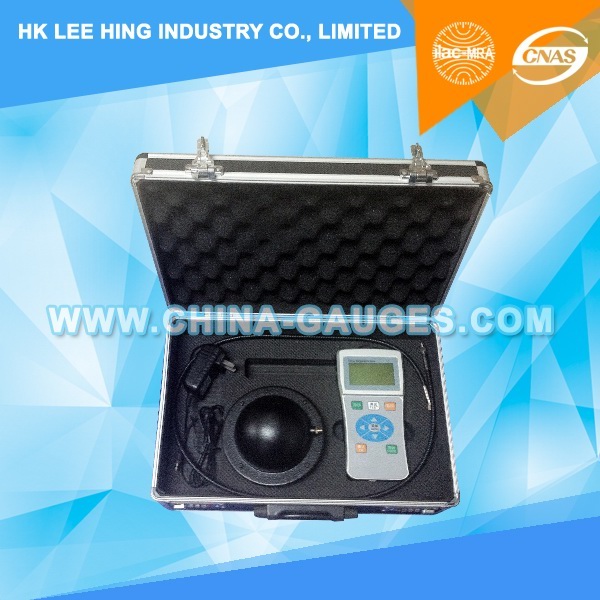

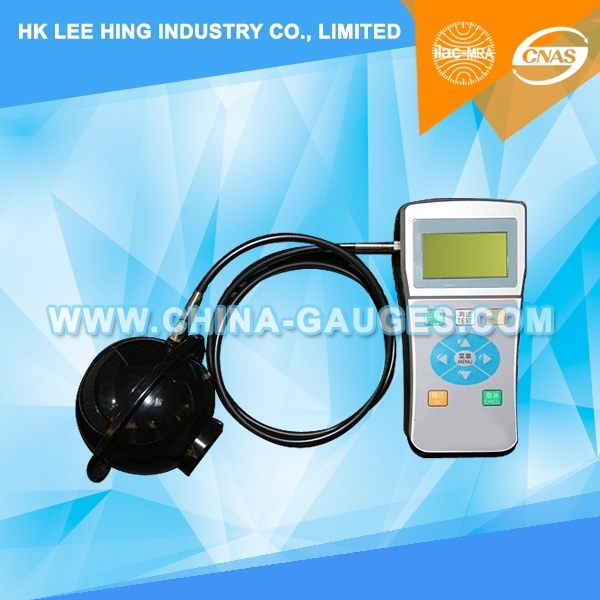

Pocket Portable Spectrometer for LED Lamp Test Equipment with 10 cm Integrating Sphere
- Measurement & Analysis Instruments > Safety Instrument
- Null
- Item No.: HPC-2
- Made in China
- Product description: Portable Spectrometer is a newly developed pocket colorimeter, adopting advanced spectrometer and microprocessor technology. It makes traditional laboratory
PRODUCT INTRODUCTION
Light source colorimeter is a newly developed pocket colorimeter, adopting advanced spectrometer and microprocessor technology. It makes traditional laboratory
instrument available for the
production on-line quality acceptance, thus greatly improve the efficiency of
fluorescent lamp, CFL, LED manufacturing.
Characteristics and specifications;
Adopting micro-spectrometer technology which has higher accurate
than traditional photo-detectors.
Measure chromaticity coordinates temperature, chromaticity
coordinate, rending index, color difference, etc.
Data hold, save and open function. Several groups of data can be
saved.
Accuracy of chromaticity coordinates: ±0.003(x, y)
128*64 LED of graphic interface displaying spectrum wave,
chromaticity diagram.
USB interface for PC communication
Quality Li-Battery for recycled-utilization
Can test parameters
1.
Total colour difference dE*, The difference in lightness dL*, The difference on
the red-green coordinate da*, The difference on the blue-yellow coordinate db*;
2.
CCT(Correlated Color Temperature) Tc and Chromaticity Coordinates x,y, u,v;
3.
Correlated color temperature difference dTc and Chromaticity coordinate
difference dx,dy,du,dv;
4.
CRI(Color Rendering Index), Color Tolerance;
5.
Peak wavelength, FWHM, Dominant Wavelength, Purity;
6.
Center wavelength, Centroid wavelength etc.
Technical indicators
1.
Range of wavelength: 380nm-780nm(visible sight);
2.
Accuracy of wavelength: ±0.5nm; Repeatability: ±0.2nm;
3.
Accuracy of chromaticity coordinate: ±0.0025 (Resolution: 0.0001);
4.
Correlated color temperature measurement range: 1500-25000K; Accuracy: ±3%,
Resolution: 1K;
5.
Total accuracy of color difference: Less than ±0.2 (Measurement conditions:
Under the standard of A light source);
6.
Power supply: 3.7V Li-Battery;
7.
Product Size:90mm*180mm*48mm
8.
Weight: approximate1kg
9.
Integrating Sphere Size:10cm
Standard Light Source Type: A-2856K, B-4874K,C-6774K, D65-6504K,
E-5448K;
Color Tolerance Type: F8000, F6500, F5000, F4000, F3500, F3000, F2700, Auto.
